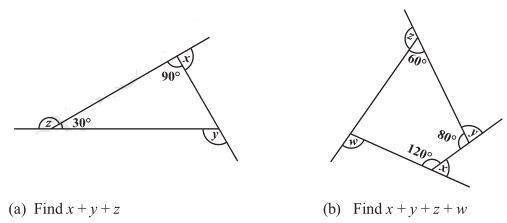

Find the angle measure of x, y, z and w in the given figures.

(a) Sum of all angles of triangle = 180°

One side of triangle = 180°- (90° + 30°) = 60°

x + 90° = 180° ⇒ x = 180° – 90° = 90°

y + 60° = 180° ⇒ y = 180° – 60° = 120°

z + 30° = 180° ⇒ z = 180° – 30° = 150°

x + y + z = 90° + 120° + 150° = 360°

(b) Sum of all angles of quadrilateral = 360°

One side of quadrilateral = 360°- (60° + 80° + 120°) = 360° – 260° = 100°

x + 120° = 180° ⇒ x = 180° – 120° = 60°

y + 80° = 180° ⇒ y = 180° – 80° = 100°

z + 60° = 180° ⇒ z = 180° – 60° = 120°

w + 100° = 180° ⇒ w = 180° – 100° = 80°

x + y + z + w = 60° + 100° + 120° + 80° = 360°

(a) त्रिभुज के सभी कोणों का योगफल = 180°

त्रिभुज का एक कोण = 180° – (90° + 30°) = 60°

Now,
x + 90° = 180° ⇒ x = 180° – 90° = 90°
y + 60° = 180° ⇒ y = 180° – 60° = 120°
z + 30° = 180° ⇒ z = 180° – 30° = 150°

Thus,
x + y + z = 90° + 120° + 150° = 360°

∴ मान हैं:
x = 90°, y = 120°, z = 150°

(b)  चतुर्भुज के सभी कोणों का योगफल = 360°

चतुर्भुज का एक कोण = 360° – (60° + 80° + 120°) = 100°

Now,
x + 120° = 180° ⇒ x = 180° – 120° = 60°
y + 80° = 180° ⇒ y = 180° – 80° = 100°
z + 60° = 180° ⇒ z = 180° – 60° = 120°
w + 100° = 180° ⇒ w = 180° – 100° = 80°

Thus,
x + y + z + w = 60° + 100° + 120° + 80° = 360°

∴ मान हैं:
x = 60°, y = 100°, z = 120°, w = 80°
